Digital Durometer Hardness Tester- HPE III
Standards
DIN EN ISO 868, DIN ISO 7619, ASTM D 2240
ISO/17025 Accredited Calibration Certificate
Official ISO/17025 accredited calibration certificates are available for all Shore scales
Package Content Kit
Digital Durometer, USB output cable, control ring, and power adapter in a foam fitted carrying case.
Software Available
BareissOne for data logging and analysis is available upon request

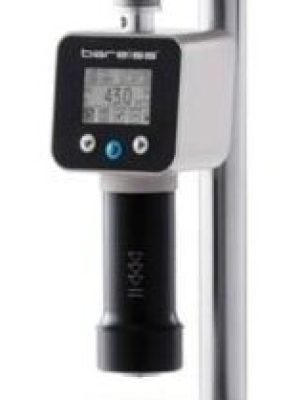

The Digital Durometer Hardness Tester, specifically the HPE III Shore A hardness tester, is currently the most sophisticated durometer tester digital available on the market. In addition to its acknowledged precision and consistency, the HPE III also records humidity, ambient and sample temperature, as well as the date and time while measuring hardness. This Shore D durometer HPE III is designed for versatility and allows for easy measurement of shore hardness levels on flexible materials, polymers, and composite materials. It adheres to standards such as ISO 48-4 digital durometer, ASTM D2240 durometer tester, and DIN ISO 7619 durometer HPE III. The advanced features of this device guarantee accurate measurements and provide safeguards against user mistakes.
This portable hardness tester has a distinctive and unusual design, making it the most dependable shore durometer available on the market. The HPE III digital durometer tester is equipped with many standard features, including a spacious LCD display for enhanced readability, a USB connection for seamless data transfer, a rechargeable battery for convenience, and our proprietary handgrip for ensuring accurate measurement angles and applied force.
The HPE III Series shore hardness tester, compliant with ASTM D 2240 and ISO 868 standards, can be used in conjunction with the Bareiss completely automated or manual test stands to reduce the impact of the operator’s influence on the measurement. This Digital durometer tester HPE III is ideal for testing rubber and elastomers, providing precise and reliable results.
Applications
- HPE III Durometer for Rubber: Perfect for measuring the hardness of rubber materials, ensuring quality and consistency.
- Digital Hardness Tester for Elastomers: Suitable for testing a wide range of elastomers, providing reliable hardness measurements.
- Shore Hardness Tester HPE III: Ideal for assessing the hardness of flexible materials, polymers, and composite materials in various industries.
By integrating the HPE III digital durometer, industries can achieve precise and consistent hardness measurements, enhancing quality control processes and ensuring compliance with industry standards.
| Test Method | Range of Application | Standard | Minimum material thickness[mm] | Indenter(mm) |
|---|---|---|---|---|
| Shore A | soft rubber, elastomers, natural rubber products, neoprene, casting resin, polyester, soft PVC, leather, pressure rollers, etc. | DIN EN ISO 868 | 4 |  |
| DIN ISO 7619, ASTM D 2240, NFT 51-174, BS903 Part. A 26 | 6 | |||
| Shore B | middle hard materials from rubber, typewriter roles, flat materials | ASTM D 2240 | 6 |  |
| Shore 0 | soft elastic materials, pressure rolls, middle firm, textile fabrics, nylon, orlon, perlon, rayon | ASTM D 2240 | 6 |  |
| Shore A0 Shore E | Soft foam, leather covers | DIN ISO 7619 ASTM D 2240 | 6 |  |
| M Shore A | Shore A | Bareiss Standard | 1.5 | |
| Shore D | hard rubber, hard plastics, acrylic glass, polystyrene, rigid thermoplastics, Resopal, pressure rollers, Vinyl plates, cellulose- Acetate, etc. | DIN EN ISO 868 | 4 |  |
| DIN ISO 7619, ASTM D 2240, NFT 51-174, BS903 Part. A 26 | 6 | |||
| M Shore D/C/D0 | Shore D 0,5 | Bareiss Standard | 1 | |
| Shore C | plastics and middle hard rubber materials | ASTM D 2240 | 6 |  |
| Shore D0 | plastics and middle hard rubber materials | ASTM D 2240 | 6 |  |
| Shore 00 | sponge- and foam rubber, cellular rubber, silicone | ASTM D 2240 | 6 |  |
| Shore 000 | sponge- and foam rubber, cellular rubber, silicone | ASTM D 2240 | 6 |  |
| Shore 000 S | sponge- and foam rubber, cellular rubber, silicone | ASTM D 2240 | 6 |  |
| Shore AM/M | Shore A | DIN ISO 7619 ASTM D 2240 | 1.5 | |
| Operating Temperature | 0°C to + 55°C |
| Specimen Temperature | 0°C to + 70°C |
| Ingress Protection | IP 50 |
| USB Power Supply | |
|---|---|
| Output | 5 VDC 1000 mA |
| Input | 100- 240 VAC 50/60 Hz 150 mA |
| Communication Interface | |
| Data output | RS232 |
| Charging cable/ communication line | RS232/ USB- Converter |
| Display | |
| Graphic display | 102 * 64 PIXEL |
| Option for sensor ambient temperature & humidity | |
| Temperature range | -20°C to + 80°C |
| Humidity range | 0% to 100% |
- Digital Durometer ASTM D 2240: Ensures compliance with ASTM D 2240 standards for accurate hardness measurement.
- Digital Durometer ISO 868: Meets ISO 868 standards, providing international quality assurance.
- Portable Hardness Tester: Lightweight and easy to use in various environments, making it perfect for on-site testing.
- Spacious LCD Display: Enhances readability and provides clear measurement results.
- USB Connection: Allows for seamless data transfer to a PC for further analysis.
- Rechargeable Battery: Offers convenience and long operational life, reducing the need for frequent battery replacements.
- Proprietary Handgrip: Ensures accurate measurement angles and applied force, minimizing user error.
